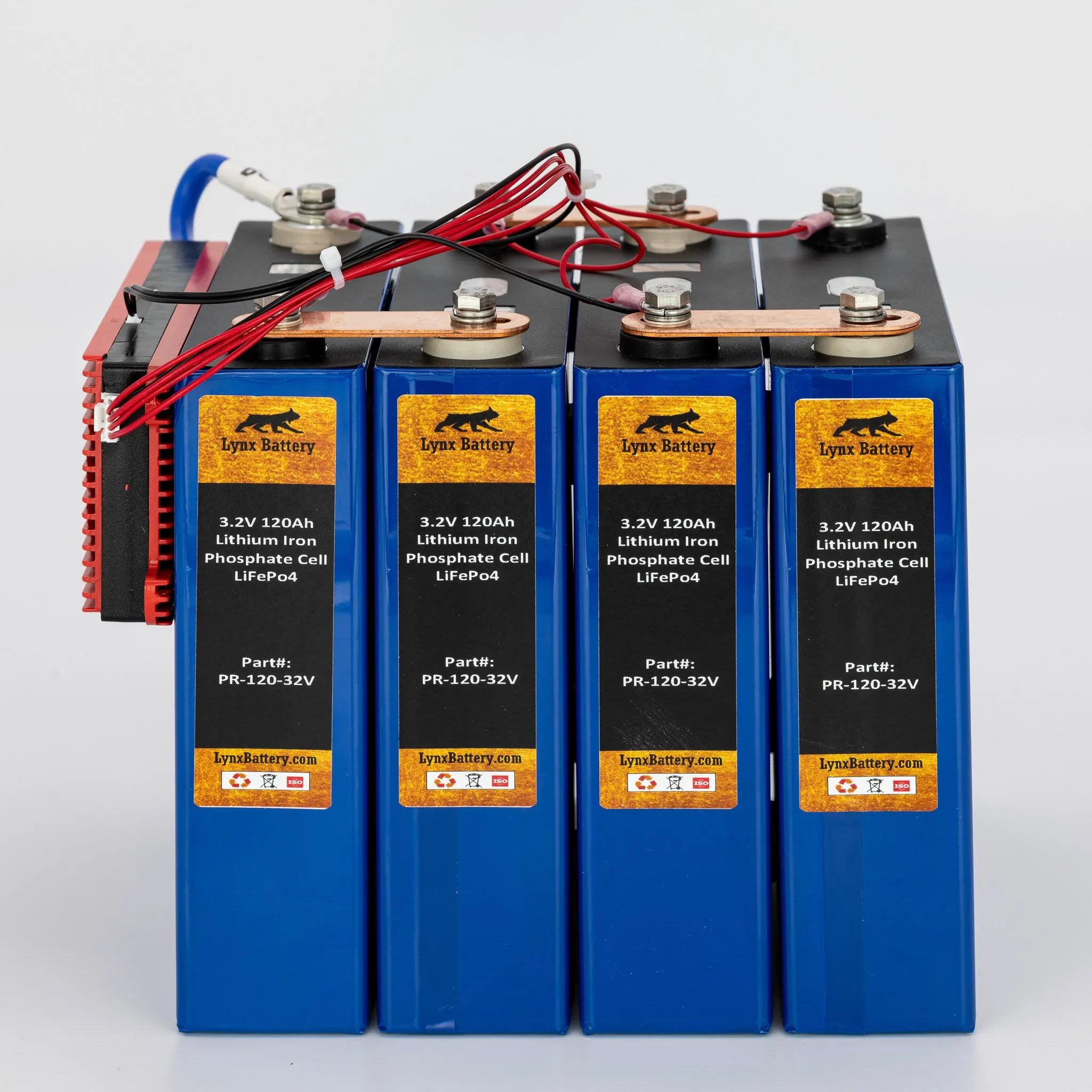

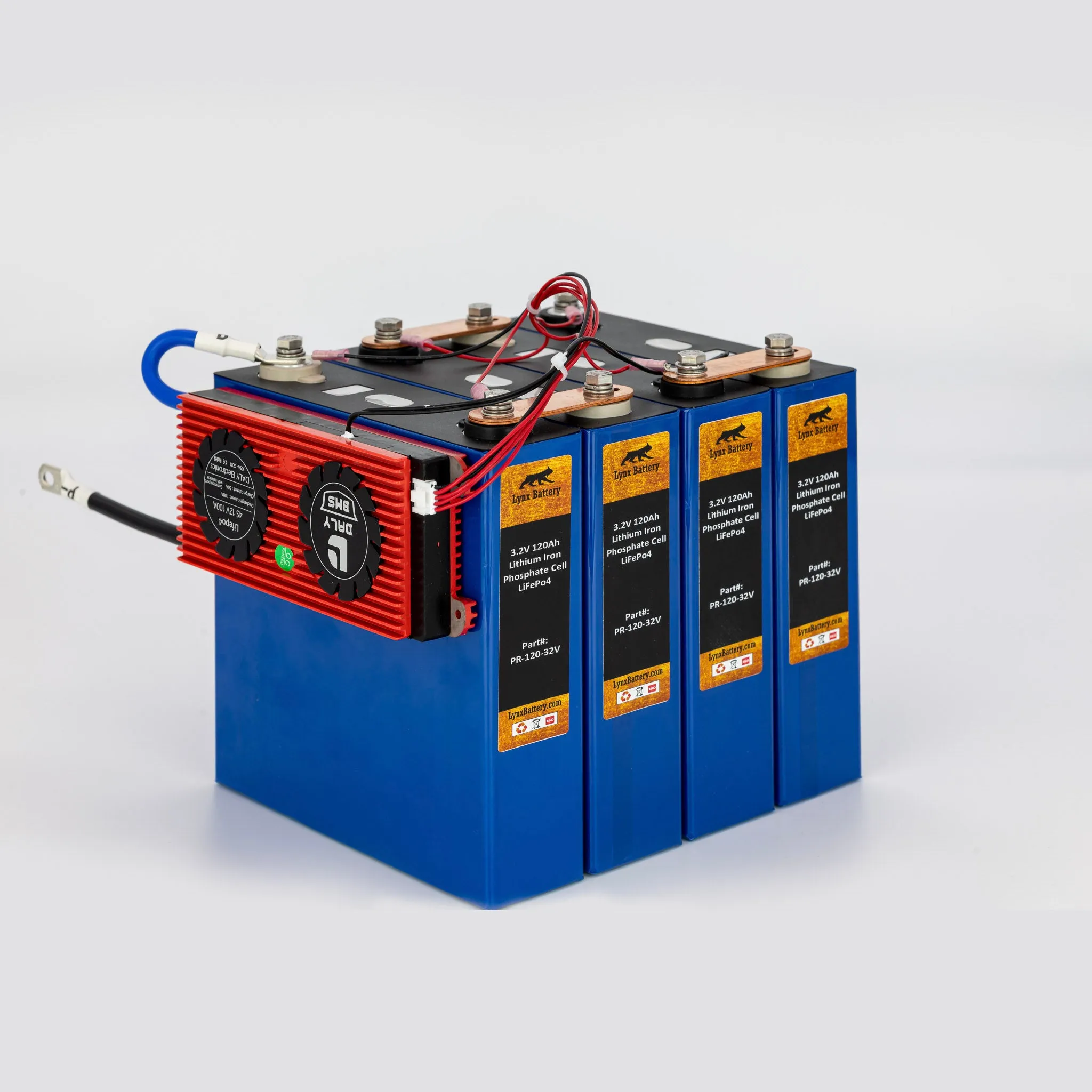

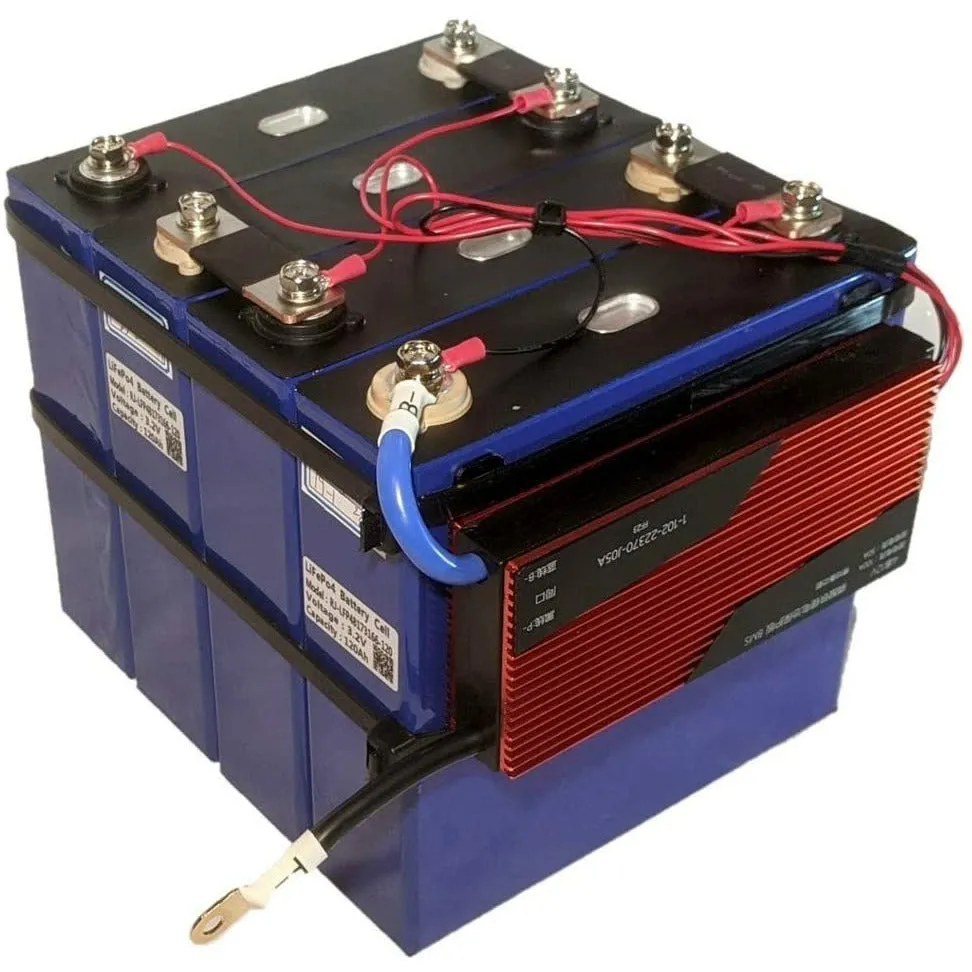

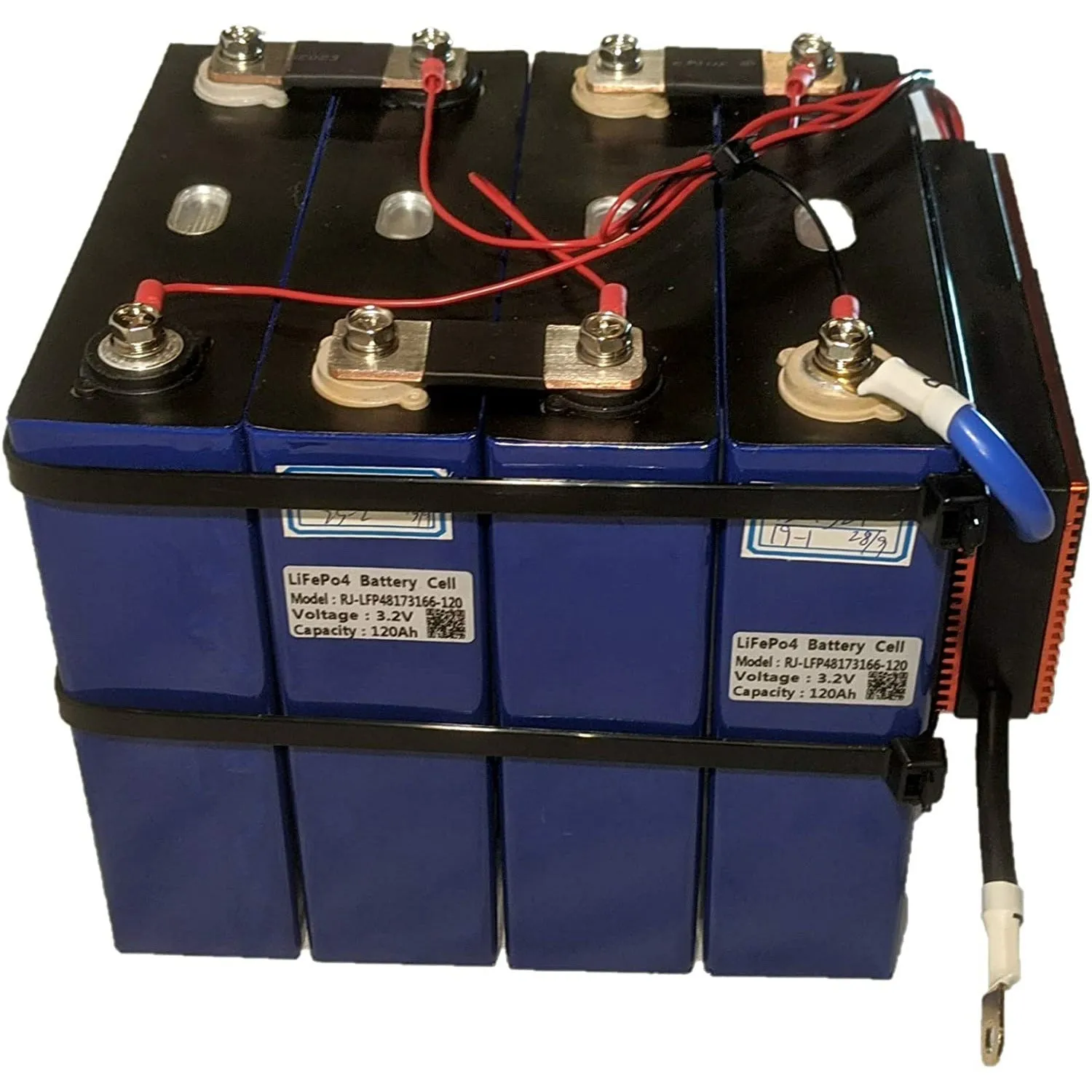

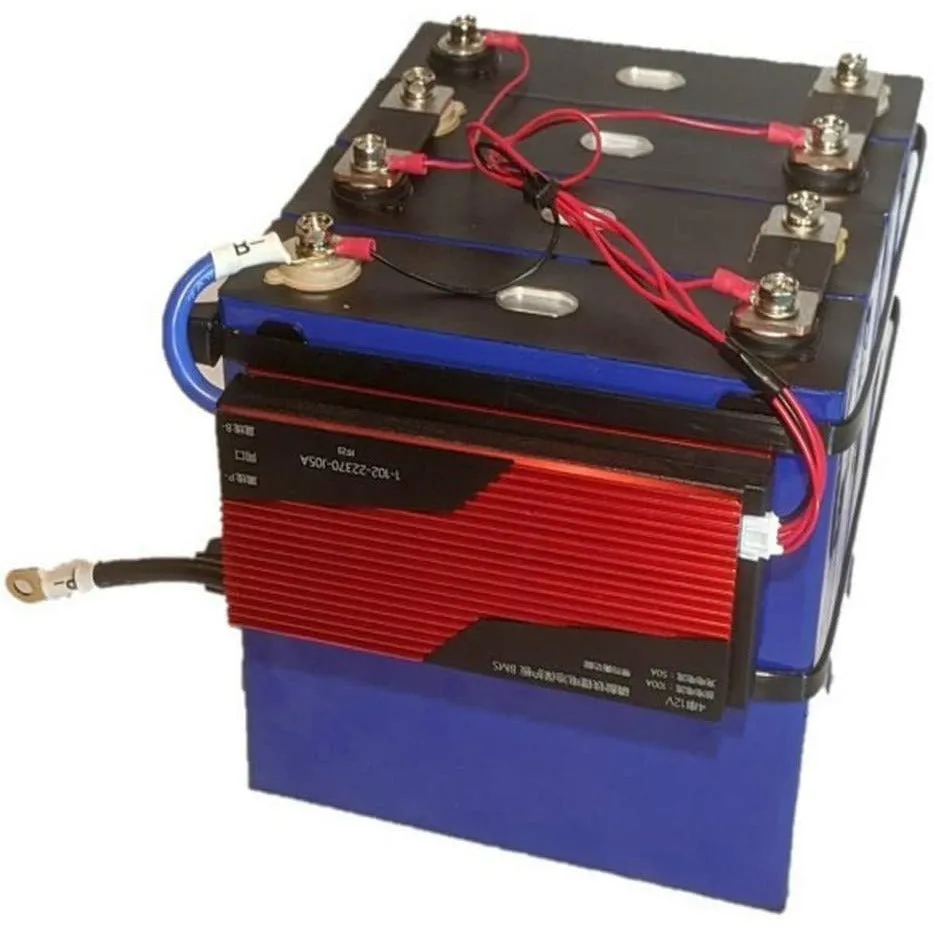

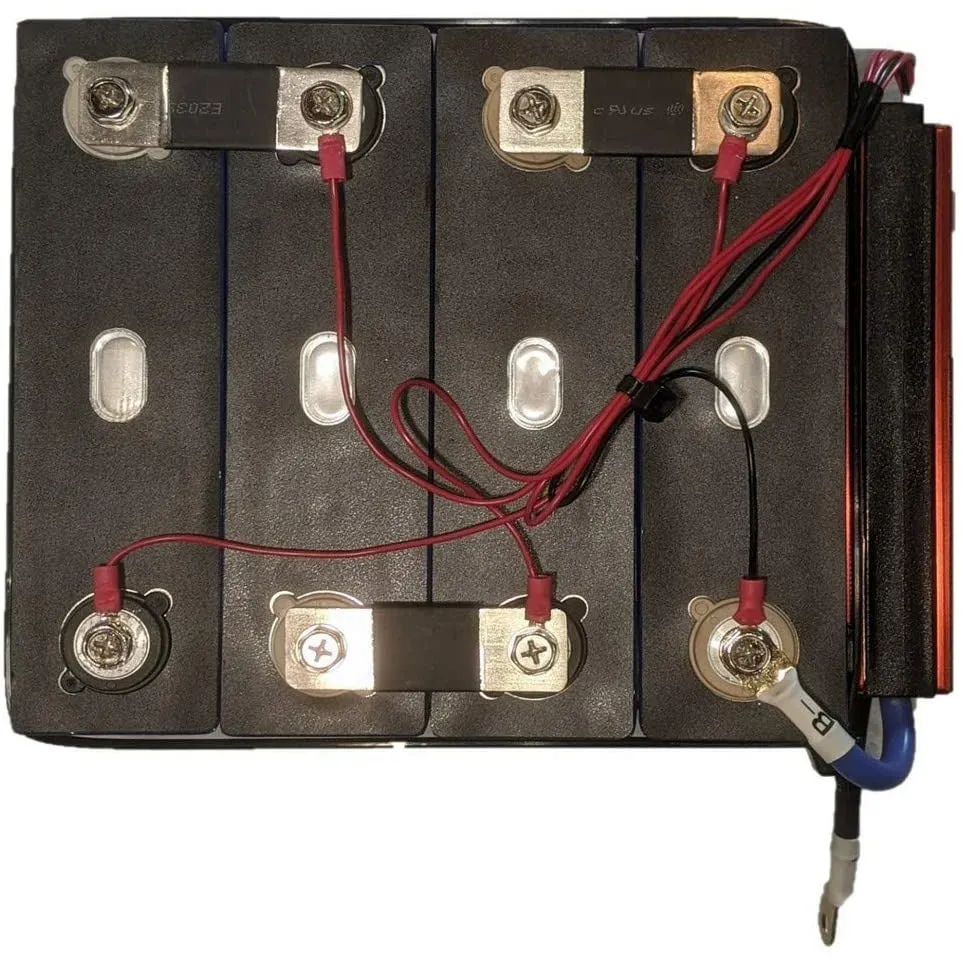

Includes 4 - Prismatic 3.2V 120Ah LiFePO4 Cells with Daly BMS, 3 Heavy Duty Bus Bars, 8 Lug Nuts, 2 - 36" Zip Ties, and 1/2" x 36" 3M VHB Tape and an instruction manual.

Built with quality materials and easy-to-use Lynx Battery Rechargeable Prismatic Cells can be mounted in any orientation, even upside down, and weighing only 27 lbs. It is half the weight of their lead-acid/AGM battery counterparts.

Battery Specifications:
Nominal Voltage: 12V
Capacity: 120Ah
Weight: 27 lbs., (12.3 Kg)
Size: 10” x 7” x 7” (L x W x H)
Cycle Life: 5000/3 years

Prismatic Cell Specifications:
Nominal Voltage 3.2V
Capacity 120Ah
Core size 6.81" x 1.88" x 6.1" (L x W x H)
Cell Weight 6.16 lbs.
Charging Current; Standard Charge 0.2C, Max Charge 1.5C
Max Discharging Rate 2C
Cut-off Voltage; Charging 3.65V Discharging 2.5V
Recommended SOC Window SOC 10%~90%
Internal Resistance 0.1~0.5mΩ Fresh Cell, 30% SOC
Working Temp; Charging 0~45°C Discharging -20℃~55℃,
Storage Temp; ≤1 month: -10–45℃, ≤3 months: 0–30℃, ≤6 months: 20±5℃

Battery Management System (BMS) Specifications:
Power balancing 2.65V
Balance Release Volt 2.65V
Balance Current 40 /-5mA
Over-Discharge Detect Volt 2.8 /-0.05V
Over-Discharge Detect Delay 0.5V
Over-Discharge Volt Release 3.0 /-0.05V
Over Current Detect Volt 150mV
Over Current Detect Delay 9MS
Short Circuit Detect Delay 250uS
Main Circuit Resistor ≤10mΩ
Working current ≤100uA
Working Temp Range -20/ 80ºC

Additional Applications:
Lithium-Ion prismatic deep cycle battery 12V 120Ah is ideal and preferred for the following applications.

Solar & wind power
Off-grid applications
RV, Marine, Golf carts
Electric vehicles
DIY electric storage
Backup power systems
Emergency lighting systems
Handling equipment
Uninterrupted standby power supply systems
