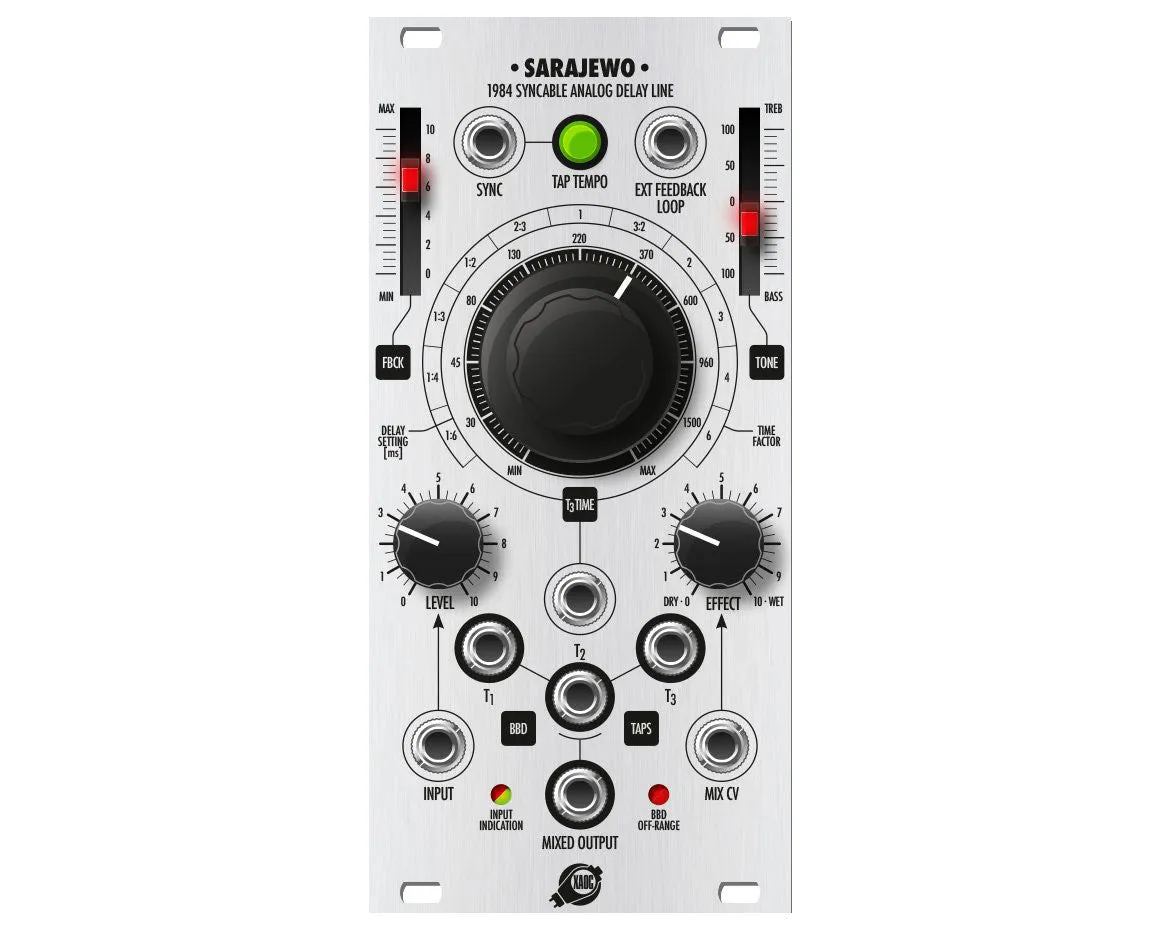

Sarajewo is a 12HP analogue delay module based on old school (but newly manufactured) BBD (Bucket Brigade Delay) chips. Featuring three delay taps, an external clock input with various tempo sync factors, and a wide range of settings controllable via CV, it is based on high quality components with maximum effort invested in the highest sound quality possible, while still preserving the charm of the BBD technology.
The module offers a clean and warm analogue sound with tonnes of character and a comfortable user interface with a tap tempo button, signal level indicators, sync and CV inputs, four signal outputs, and an adjustable feedback filter.
- BBD-based analogue delay unit
- Up to 1560ms of analogue delay times
- Three delay taps with individual outputs
- External clock synchronisation
- Manual tap tempo function
- Variable tempo divisions and multiplication
- Automatic bandwidth control
- Tilt filter in feedback loop
-
External feedback loop input
-
12hp, skiff friendly
- Current draw: 180mA/-120mA
- Reverse power protection
Product Specs
- Item Number: 16242
- Make:
- Model:
- Condition:
- Finish: Silver
- Categories: ⇒
- Function:
- Made In: Poland
- MPN: XAOC-SAR
- Modular Grid: Eurorack
- Dimensions: 12 HP
- Power: 180 mA 12V 120 mA -12V 0 mA 5V
